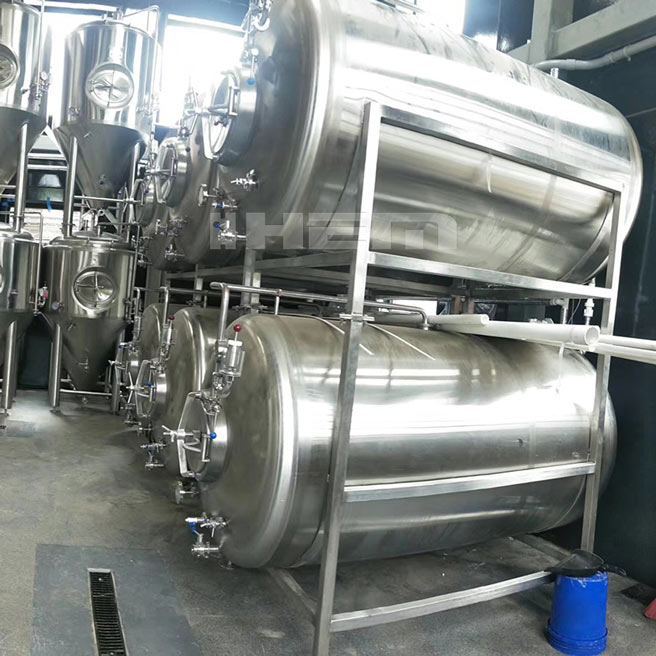

Horizontal Bright Beer Tank

Inside

Polishing Detail

SUS 304 Butterfly Valve

Sample Valve

Intro

Horizontal Bright Beer Tank is often also called serving tank, tax determination tanks or clear beer tank (=CBT), Jacketed Bright Beer Tank (=BBT) or maturation or conditioning tank. Made of stainless food steel DIN 1.4301 (AISI 304). Standardized dimensions and equipment, or according to individual customer requirements. Function:Beer maturation/conditioning/serving/filtered beer receiving. 100% TIG welding with pure argon gas shield, Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner, Insulation: Polyurethane; TH=80mm

Request a Quote

Video

Features Parameters

Features

Made of stainless food steel DIN 1.4301 (AISI 304)
Standardized dimensions and equipment, or according to individual customer requirements
Interior Shell: SUS304 full welded; TH=4mm
Exterior Shell:SUS304 full welded; TH=2.5mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket on side wall
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Flanged manway on top
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Carbonation port with stone
Shockproof pressure gauge on CIP arm
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
3 or 4 pcs completely SUS304 heavy duty legs with leveling pad
Sanitary level tube with stainless steel ball valves
Complete valves, fittings and all parts

Parameters

Model	BT-1000L
Capacity	Useful capacity: 1000L; Gross capacity: 1250L
Material	SUS304
Application	Restaurant, bar, hotel, brewery
Out size	Ø1260*2800mm
Cooling method	Jacket section cooling
Thickness	Inner: 3.0mm; External2.0mm
Outrigger	Ø102mm*4
Test pressure	0.3Mpa
Working pressure	0.2Mpa
Heat exchange area	3m²
Weight	450kg
