Intro

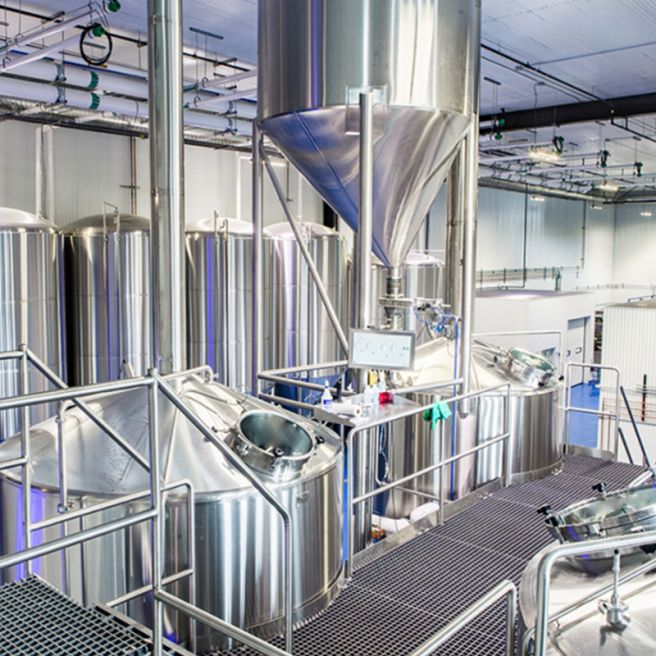

HEM's Large Scale Beer Brewing Equipment is a brewery for commecial and industrial breweries which consist of the industrial wort brew machine and a fully equipped set of the professional beer fermentation tanks with a nominal capacity from 1000 up to 100000 liters. It's a medium-size and big-size craft brewery intended mainly for restaurants and pubs with their own beer production. But the capacity of bigger models is enough also for industrial breweries with retail sale. Equipped with industrial brewhouse wort machine and modern professional beer production equipment like cylindrical and conical beer fermentors or open fermentation vats, automatic cooling system, cleaning and sanitizing system etc. It is possible to use them to production of all known types of beer. The craft brewery intended for bigger restaurants and industrial brewing companies with retail sale. Main part of the brewery is stainless steel wort brew machine with simple industrial design intended to maximal effective work and high production capacity of the brewhouse. Scalable Brewing Solutions for Consistent Taste and Greater Yield.

Video
Features
  • We plan and design Large Scale Beer Brewing Equipment, all systems can be designed with the client’s input for a defined process;
  • A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);
  • Fully piped and wired, including valves and sensors;
  • Integrated pump system;
  • CIP system: separated CIP for individual tanks to prevent cross product interference;
  • Master brew interface control system (touch screen control panel),
  • Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;
  • Automated lautering, automated water mixing
  • High quality insulation effect: Rock wool thickness: 80mm
  • Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm
  • World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
  • Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm
  • Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included
  • Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included
  • Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included
  • Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request
Parameters
Capacity 500-100000L/Batch
Material SUS304
Combination method Mash tun, Lauter tun, Kettle/whirlpool tank
Application Restaurants, bars, hotels, brewery
Heating way Steam heating/Direct fire heating
Voltage AC380/220V, 50/60HZ
Degree of automation Semi-automatic/Fully automatic
Models & Specs
Item Production capacity Volume in US Gallon Heating area Tank diameter Height
BS-200 200L/day 53 US Gallon 0.25m2 910mm 2200mm
BS-300 300L/day 79 US Gallon 0.3m2 910mm 2300mm
BS-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
BS-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
BS-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
BS-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
BS-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
BS-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
BS-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
BS-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
BS-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
BS-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
