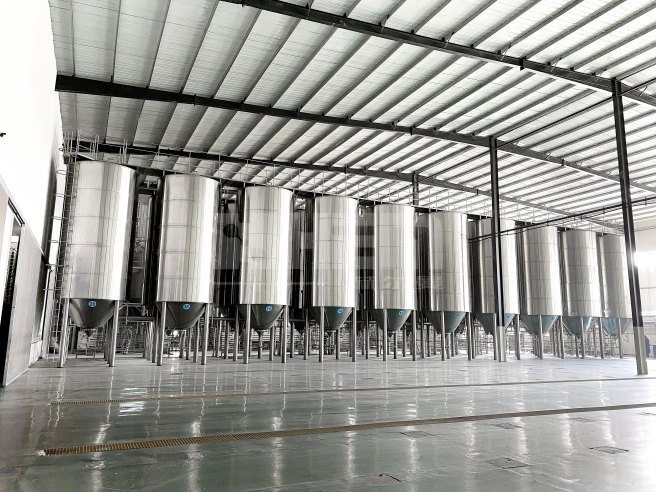

30000L(30T) Fermentation Tank

Intro

30000L(30T) Fermentation Tank is a Modular cylindrically-conical tank consist of a base tank (BT) and expansion accessories (valves, fittings, armatures, tools …) By choosing and using various types of expansion accessories, it is possible to assemble the tank in several configurations that are optimal for the desired part of the production process.

Request a Quote

Video

Features Parameters Models & Specs

Features

Our tanks are designed to promote optimal fermentation and/or carbonation.

Made of stainless food steel DIN 1.4301 (AISI 304)
Standardized dimensions and equipment, or according to individual customer requirements
Classic design, PUR insulation, double stainless steel jacket, water (or glycol) cooling duplicators
Accurate temperature control and reliable CIP are requirements to ensure a quality finished product
Fermenters offered with side rotating racking arms or standpipe design plus hop ports.
An extra tri-clamp fitting can be added for a carbonation stone if desired.
Cone angles can be changed to suit customer requirements.
Adjustable pressure valve for controlled fermentation – Overpressure setting mechanism with a glycerine manometer
PUR insulation – polyurethane insulation with thickness according to the size of the tank and the target environment
Guaranteed inner surface roughness : Ra < 0.8 μm or less (grinded surfaces) / Ra < 0.5 μm or less (polished surfaces), according to customer´s requirement
Service door (manhole) on the top cone or on cylinder part, according to customer requirements
Pure-beverage output armature with a butterfly valve for pure beverage (beer, wine, cider) output
Thermometer socket – welded socket for inserting of thermosensor or thermometer
Manometer – It is included in the set of the adjustable pressure valve. Made of stainless steel, with glycerine inside.
Filling level indicator – Sanitizable glass or plastic pipe for visualisation height level of the beverage product in the tank

Parameters

Model	FT-30000L
Capacity	Useful capacity: 50000L
Material	SUS304
Application	Large brewery
Cooling method	Jacket section cooling
Thickness	Inner: 3.0mm; External2.0mm
Test pressure	0.3Mpa
Working pressure	0.2Mpa

Models & Specs

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
FT-500	500L/day	132 US Gallon	1.8m²	1160mm	2300mm
FT-5BBL	5BBL/day	155 US Gallon	1.9m²	1200mm	2350mm
FT-600	600L/day	158 US Gallon	2.0m²	1220mm	2350mm
FT-700	700L/day	185 US Gallon	2.4m²	1260mm	2380mm
FT-800	800L/day	212 US Gallon	2.5m²	1260mm	2400mm
FT-7BBL	7BBL/day	216 US Gallon	2.5m²	1280mm	2450mm
FT-1000	1000L/day	264 US Gallon	2.6m²	1360mm	2500mm
FT-10BBL	10BBL/day	310 US Gallon	2.8m²	1460mm	2700mm
FT-1500	1500L/day	396 US Gallon	3.2m²	1520mm	2900mm
FT-2000	2000L/day	528 US Gallon	3.6m²	1560mm	2850mm
FT-2500	2500L/day	660 US Gallon	3.8m²	1650mm	3200mm
FT-3000	3000L/day	792 US Gallon	4.5m²	1760mm	3800mm
FT-4000	4000L/day	1057 US Gallon	4.9m²	1900mm	4100mm
FT-5000	5000L/day	1320 US Gallon	7.2m²	1960mm	4400mm
